New Silicone Neon LED Strip Max run 15M – Intergrated silicone extrusion – IP67 Outdoor led Neon Top Bend / Side Bend
Silicone Neon LED Strip Max run 15M Intergrated silicone extrusion molding – IP67 Outdoor led Neon,
Description
Silicone Neon LED Strip - Intergrated silicone extrusion molding - Outdoor led Neon
- Standard production length is 100meters length in one Roll/carton.
- You can cut at your length after got and seal it by accessories.
- we accept customized order.
- Attention : max run length mean you need attention volt drop when your intall length exceed max run(adding power injection points can help prevent voltage drop and maintain consistent brightness across the strip.)
Max run length is 15meters. 1LED cuttable. See below specificaitons.
Intergrated Silicone extrusion strip Max run length 15 Meter
Features
1. Pure silicone material, Safe and Environmental friendly
2. Unique optical light distribution structure design, Uniform lighting surface and no shadow
3. IP67 protection level, salt solution resistance, acids & alkalis and UV
4. Systematized solution of installation.
5. Flex, Top bend, vertical bending,Side Bend horizontal bending
6. Dot free will bring the most excellent performance for indoor & outdoor applications.
7. Warranty 3 years , working life ≥50000 hours.
5. Applications: Hotels, supermarkets, cabinets, outdoor lighting
Note：
-Max. run length refers to single side feed in serial connection.
-The given data are typical values due to the tolerances of the
productionprocess and the electrical components, values for
light output and electrical power can vary up to 10%.
-The given color temperature is the temperature of finished product.
Specification:
| Model | Max. run length | Cuttable | Volt | Wattage | LED Type | Color Temperature | Top Bending | Side Bending |
|---|---|---|---|---|---|---|---|---|
| N1010 | 15meters | 1led | 24VDC | 10W/M | SMD2835 120leds/M | 3000K/4000K/6000K | √ | √ |
| N1212 | 15meters | 1led | 24VDC | 10W/M | SMD2835 120leds/M | 3000K/4000K/6000K | √ | √ |
| N1616 | 15meters | 1led | 24VDC | 10W/M | SMD2835 120leds/M | 3000K/4000K/6000K | √ | √ |
| N2010 | 15meters | 1led | 24VDC | 10W/M | SMD2835 120leds/M | 3000K/4000K/6000K | √ | × |
| N2014 | 15meters | 1led | 24VDC | 10W/M | SMD2835 120leds/M | 3000K/4000K/6000K | √ | × |
| N2020 | 15meters | 1led | 24VDC | 10W/M | SMD2835 120leds/M | 3000K/4000K/6000K | √ | √ |

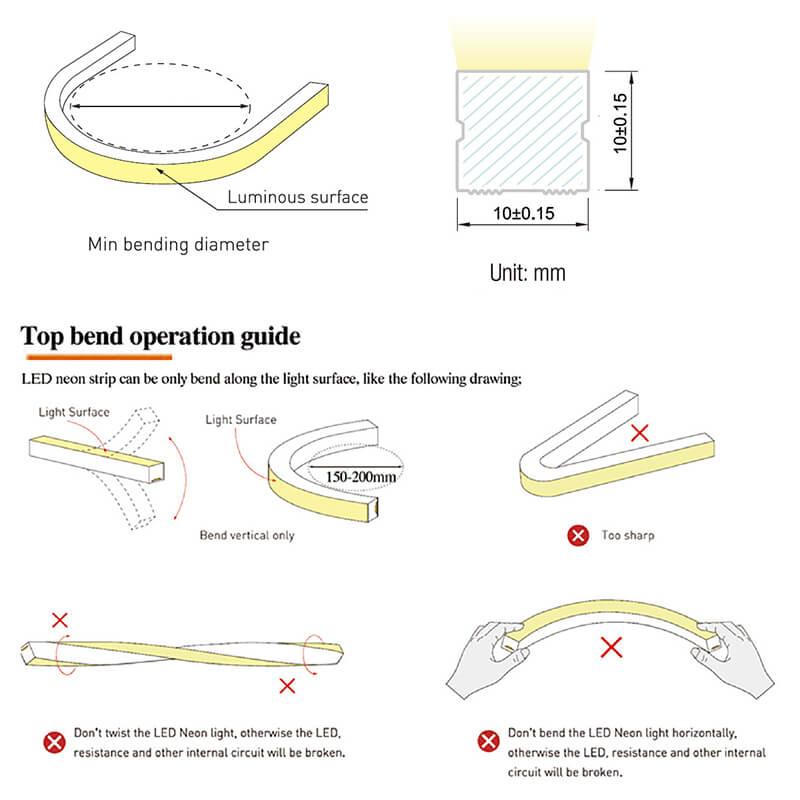

Top bend : the silicone neon led can be bend vertical,the bend direction is vertical to light emitting esurface.
Side bend : the silicone neon led can be bend to side,the bend direction is horizontal with light emitting surface.

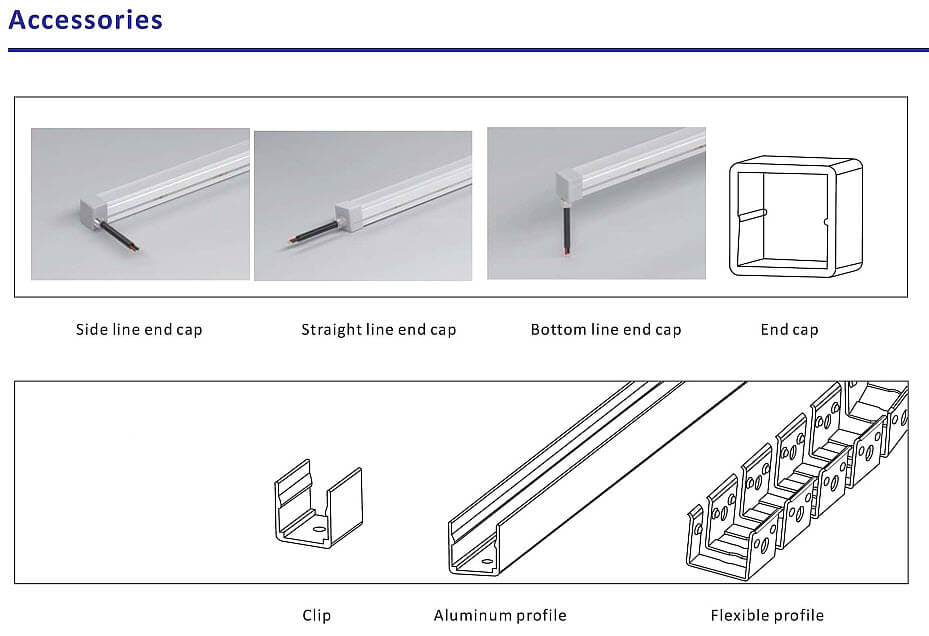

Can it cut and What the accessories are?
Endcaps: there are sealed endcap no hole and endcap with hole.
and three types by hole direction entry(applicated different wire entry install way):
- side entry endcap
- straight entry endcap
- bottom line entry endcap

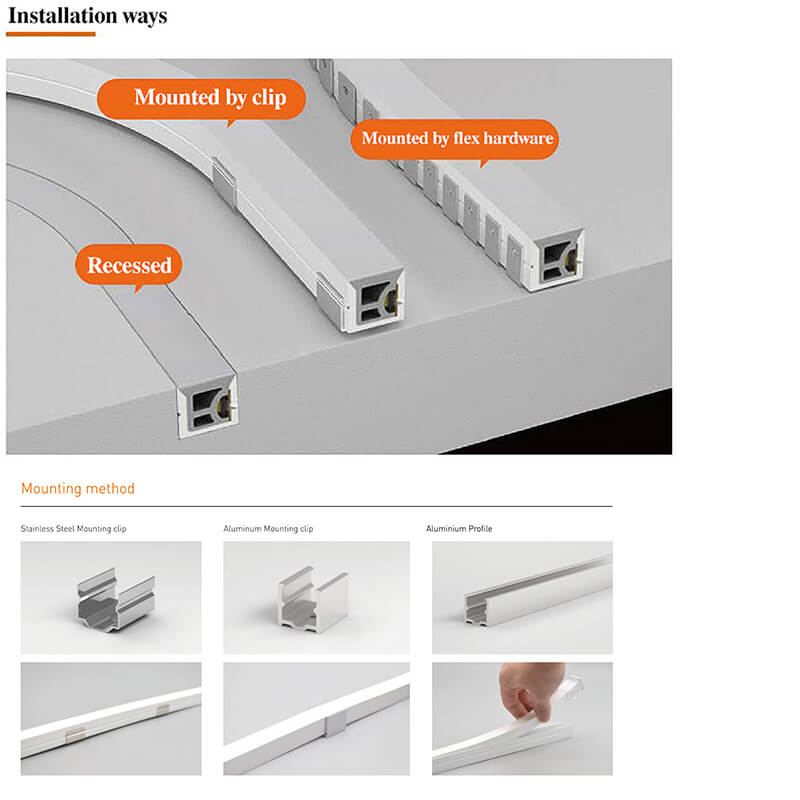

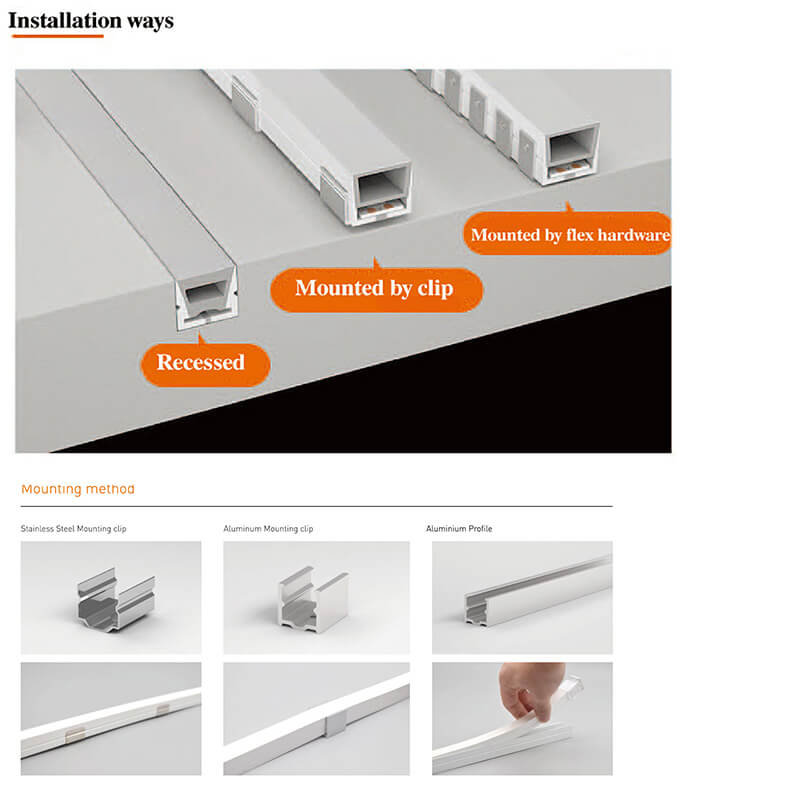

Installation bracket:
- aluminum fixed bracket,
- flex fixed alum profile,
- fixed aluminum profile

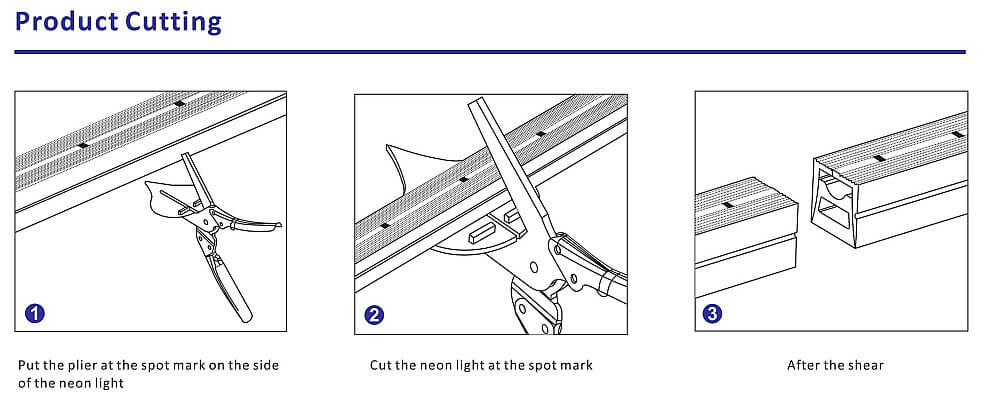

Yes, when you need cut shorter length to the Silicone Neon LED Strip,please remember cut the spot mark ,

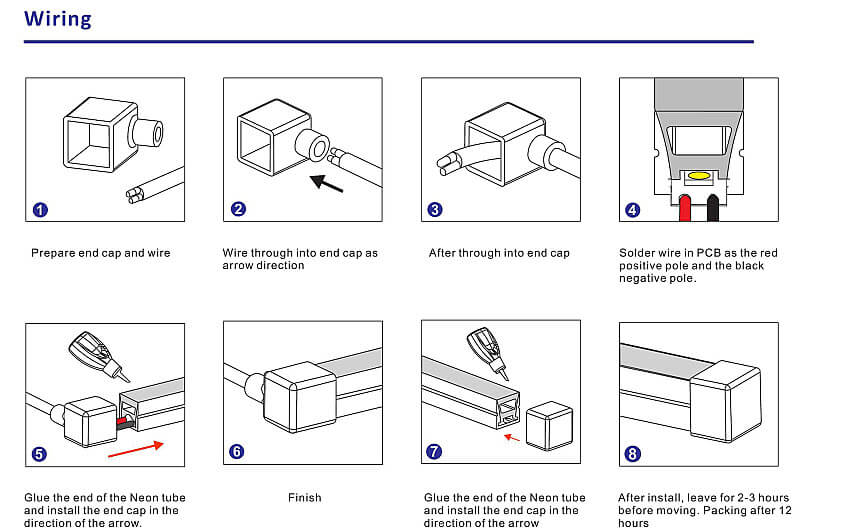

and sealed and wire at correct methods to sure the waterproof protection.
