Linear LED Ground Light Surface mount landscape pathways, step edges, plazas
Linear LED Ground Light
Model: LS-LR8058
Size:L1000 × W80 × H58 mm
Power: 12W
Voltage: DC24V
Color options : 3000K, 4000K, 6000K, Golden Yellow, DMX512 RGB, DMX512 RGBW
Lumen: 100lm/W
CRI: ≥80Ra
IP Grade:IP65
Housing Material:Aluminum Alloy
Install way: surface mounted
Application: Landscape Pathway / Plaza / Step
Description
Linear LED Ground Light
Surface mount · Aluminum housing · IP65 waterproof · 12W high efficiency · 120° wide beam
Ideal for landscape pathways, step edges, plazas and outdoor lighting projects
Key Features
Engineered for outdoor landscape lighting — combining aesthetics with reliability
Premium Aluminum Housing
Extruded aluminum alloy housing with excellent heat dissipation. Powder-coated for corrosion resistance and anti-aging performance, built to withstand harsh outdoor conditions.
IP65 Waterproof Rating
Fully sealed design achieves IP65 protection, effectively resisting rain and dust. Suitable for direct installation in open-air areas, lawn edges, and other damp locations.
Epistar LED Chips
Equipped with Epistar brand LED chips. 48 evenly spaced LEDs deliver high luminous efficiency, low light decay, and long lifespan for consistent, lasting performance.
12W Energy Efficient
DC24V safe low-voltage operation at only 12W. The 120° wide beam angle delivers uniform, soft wall-washing illumination with minimal energy consumption.
Customizable Colors
Available in 3000K, 4000K, 6000K, Golden Yellow, DMX512 RGB, and DMX512 RGBW to match different landscape design requirements.
Wide Temperature Range
Operating temperature from -40°C to +50°C. Stable performance in both extreme cold and heat, suitable for outdoor projects across various climate zones.

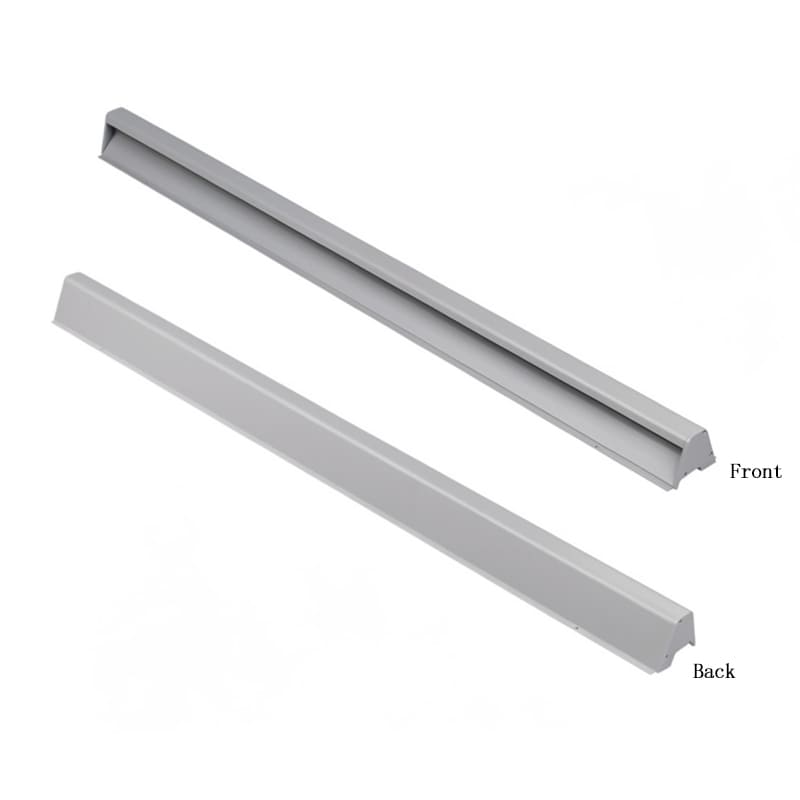

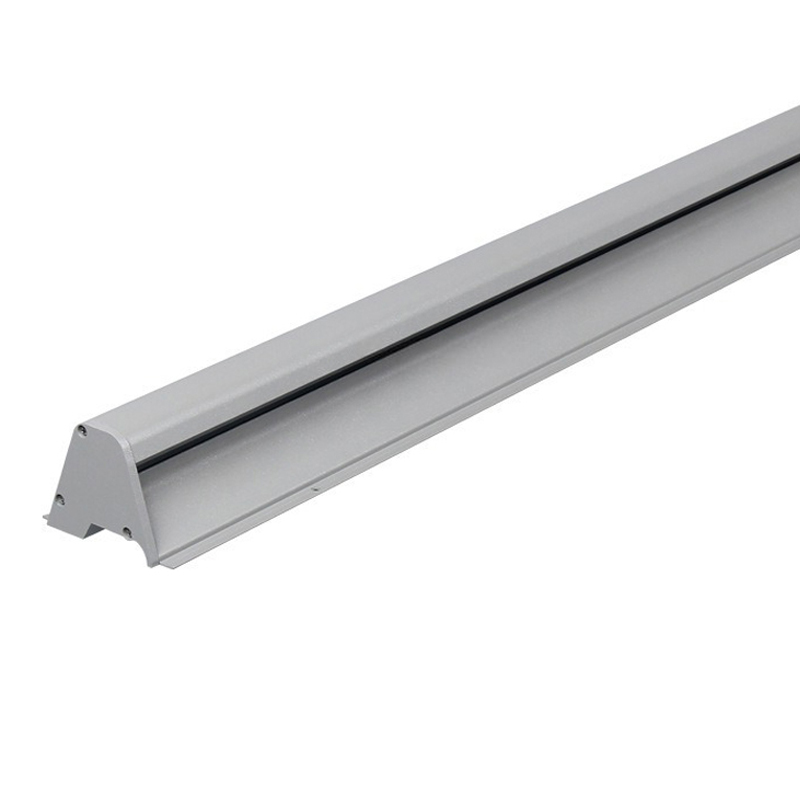

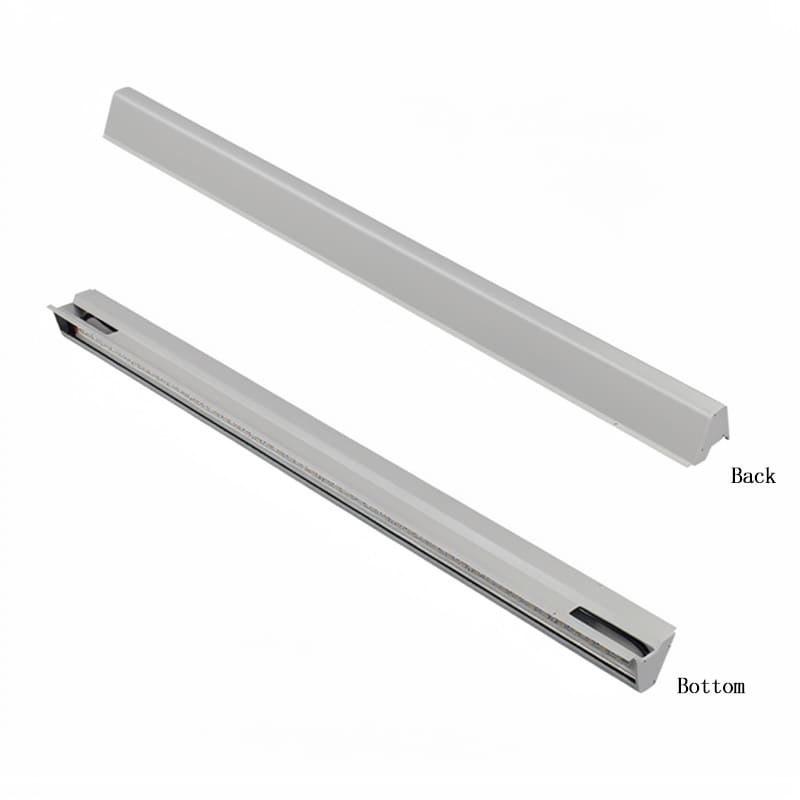

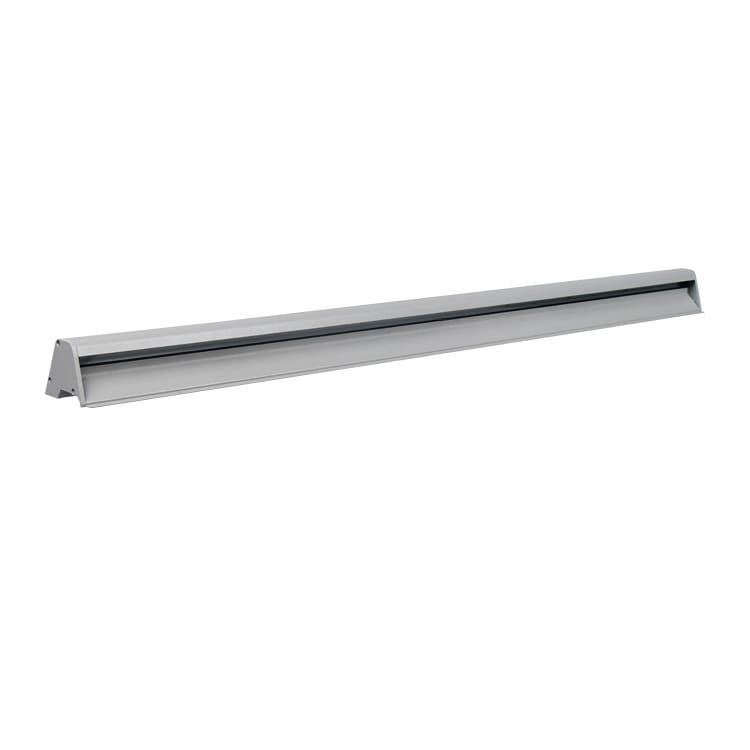

Product Appearance
Triangular cross-section with clean, minimalist lines for concealed installation

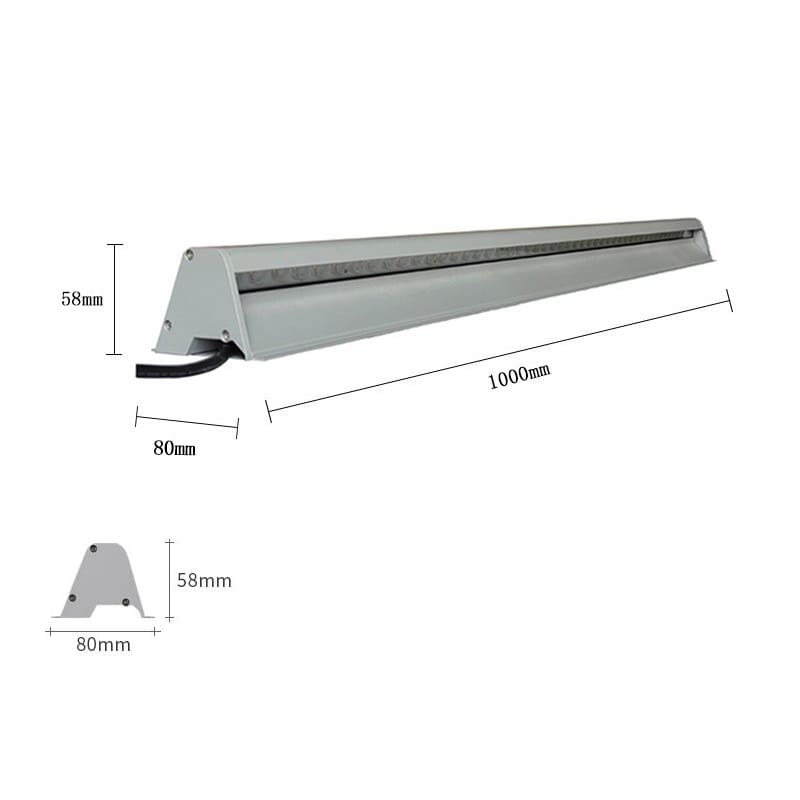

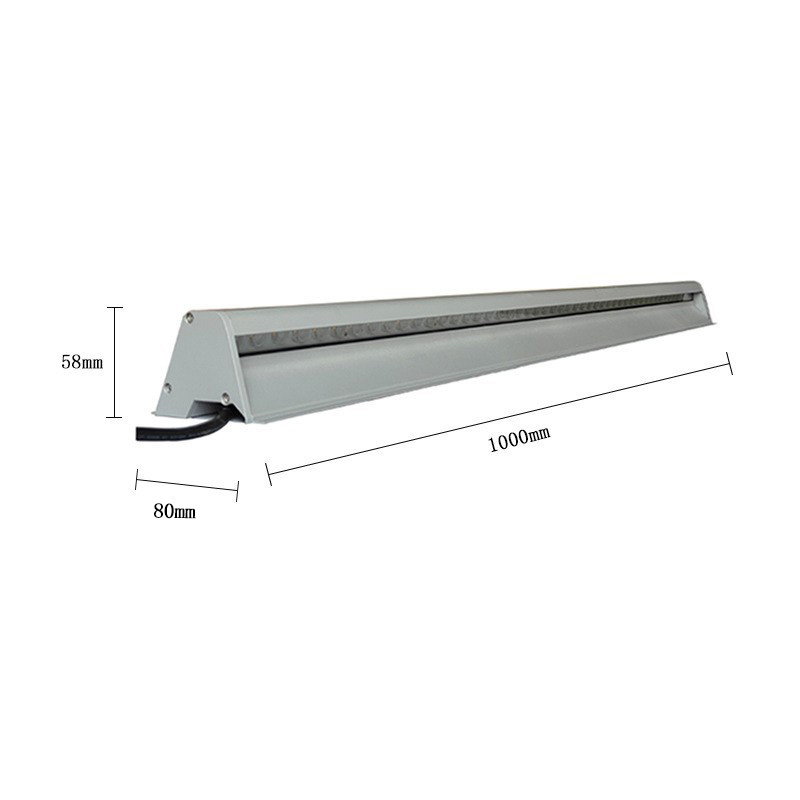

Dimensions

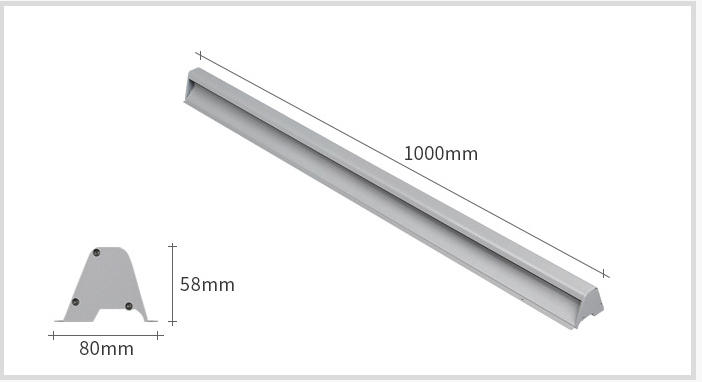

Product drawing (unit: mm)
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Model | LS-LR8058 | Chip Brand | Epistar |
| Product Size | 1000 × 80 × 58 mm | Emitting Color | 3000K, 4000K, 6000K, Golden Yellow, DMX512 RGB, DMX512 RGBW |
| Housing Material | Aluminum Alloy | Beam Angle | 120° |
| LED Quantity | 48 pcs | Waterproof Rating | IP65 |
| Power | 12W | Operating Temp. | -40°C ~ +50°C |
| Input Voltage | DC 24V | Application | Landscape Pathway / Plaza / Step |

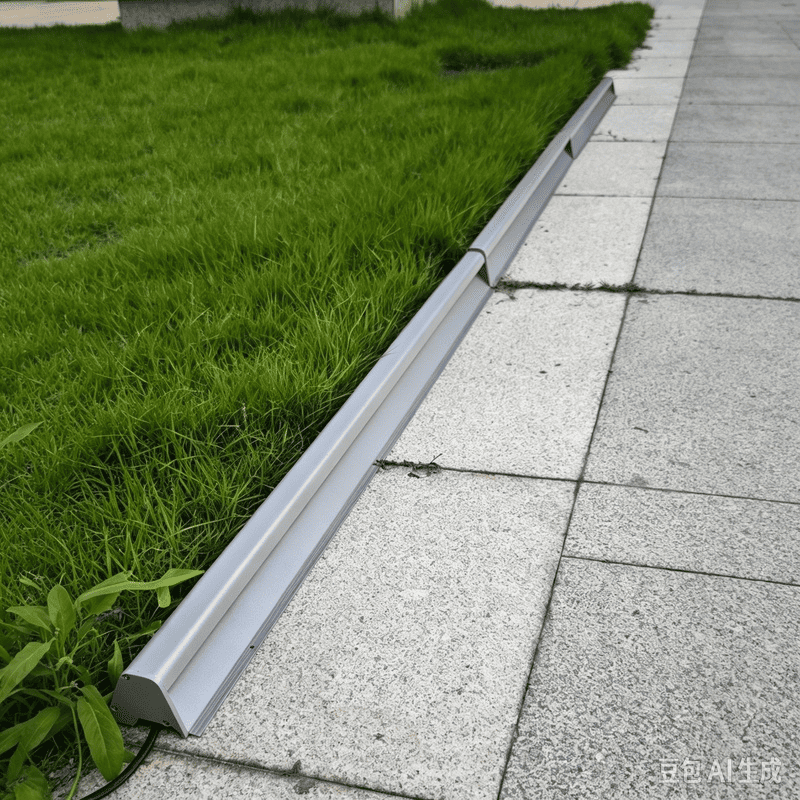

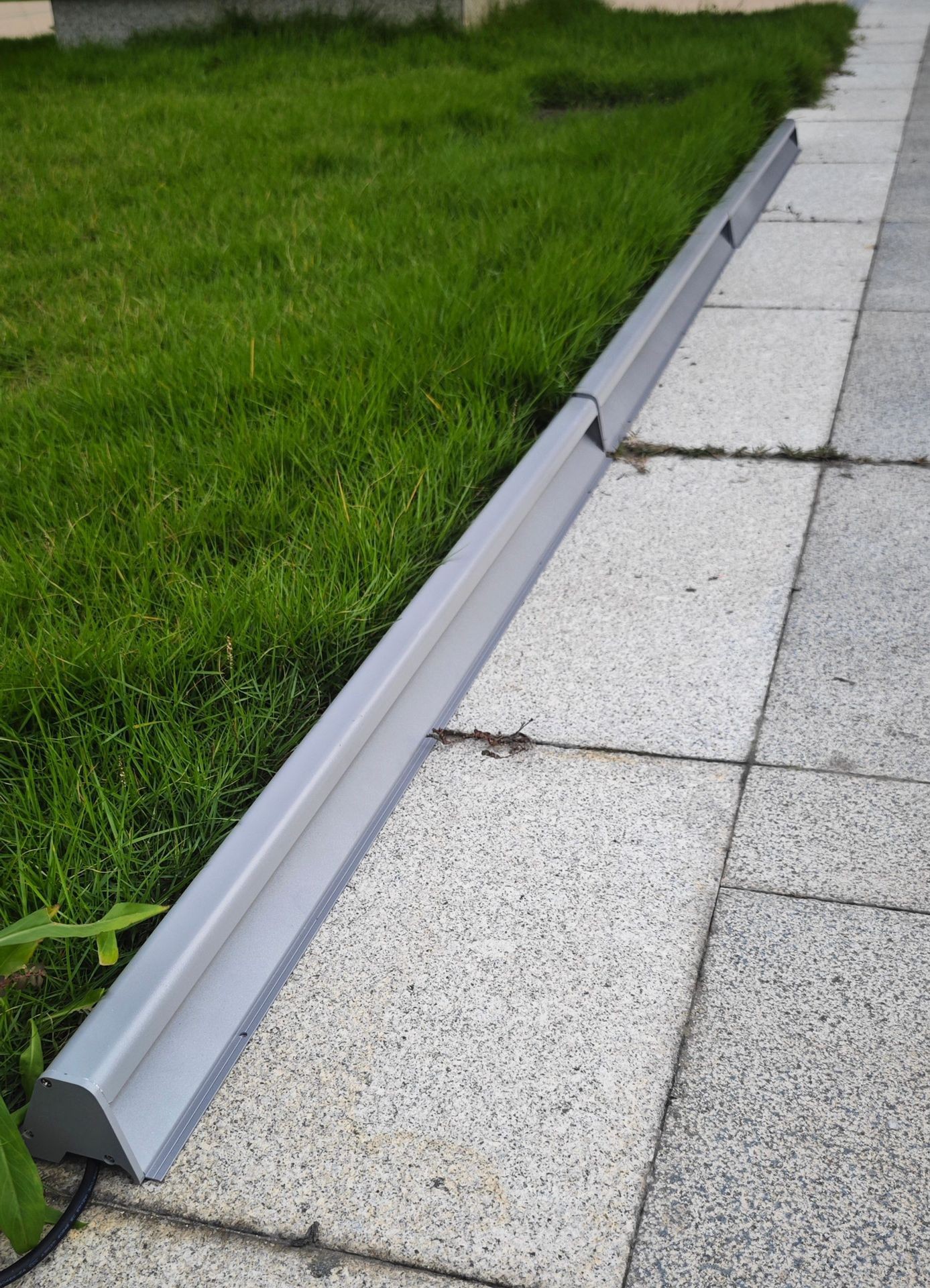

Installation
Surface-mounted at the base, placed directly on the ground or flush with pavement edges
Applications

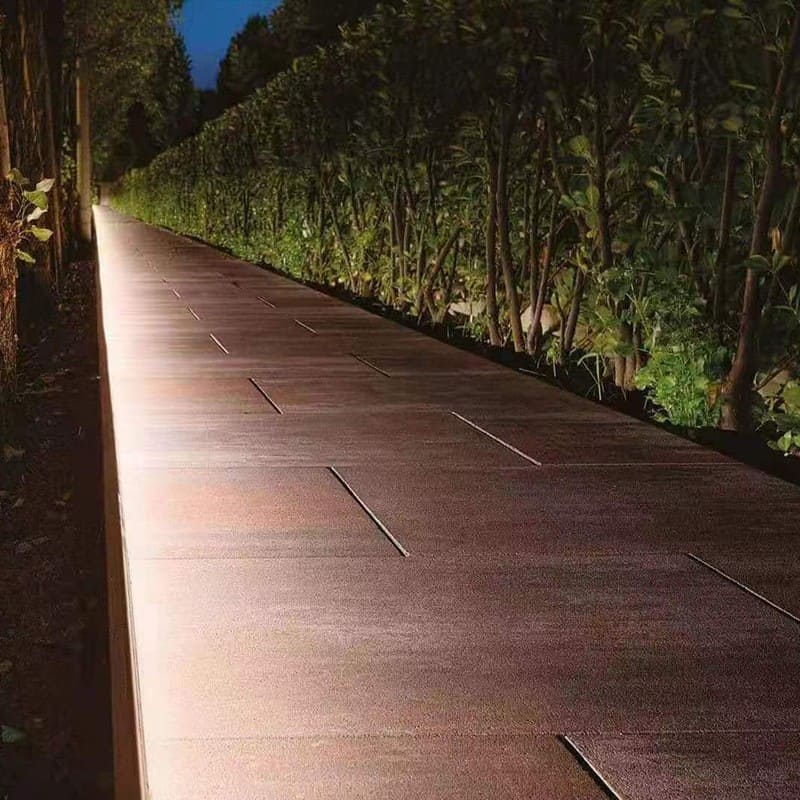

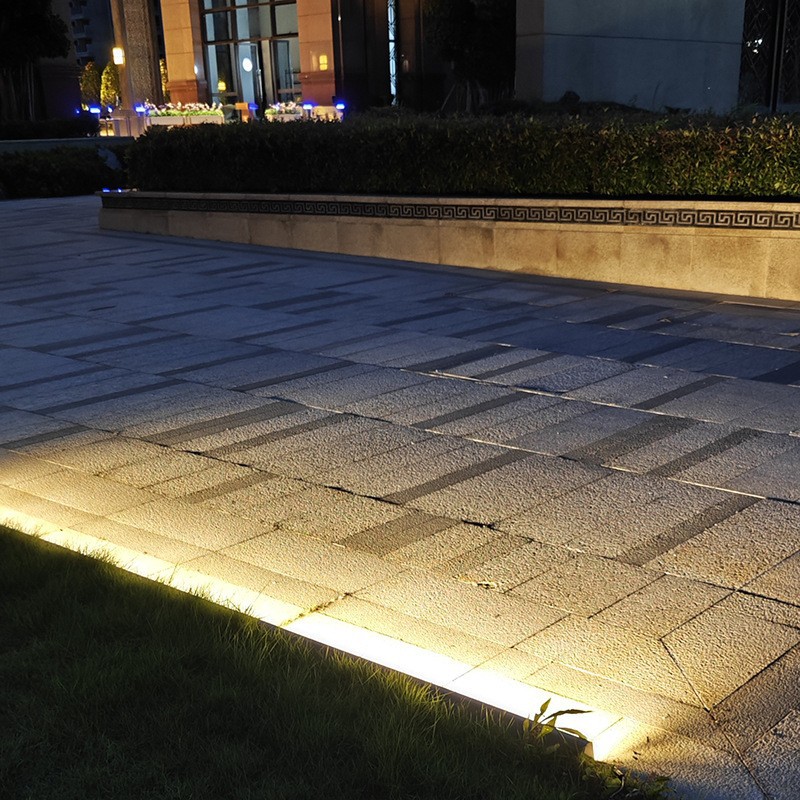

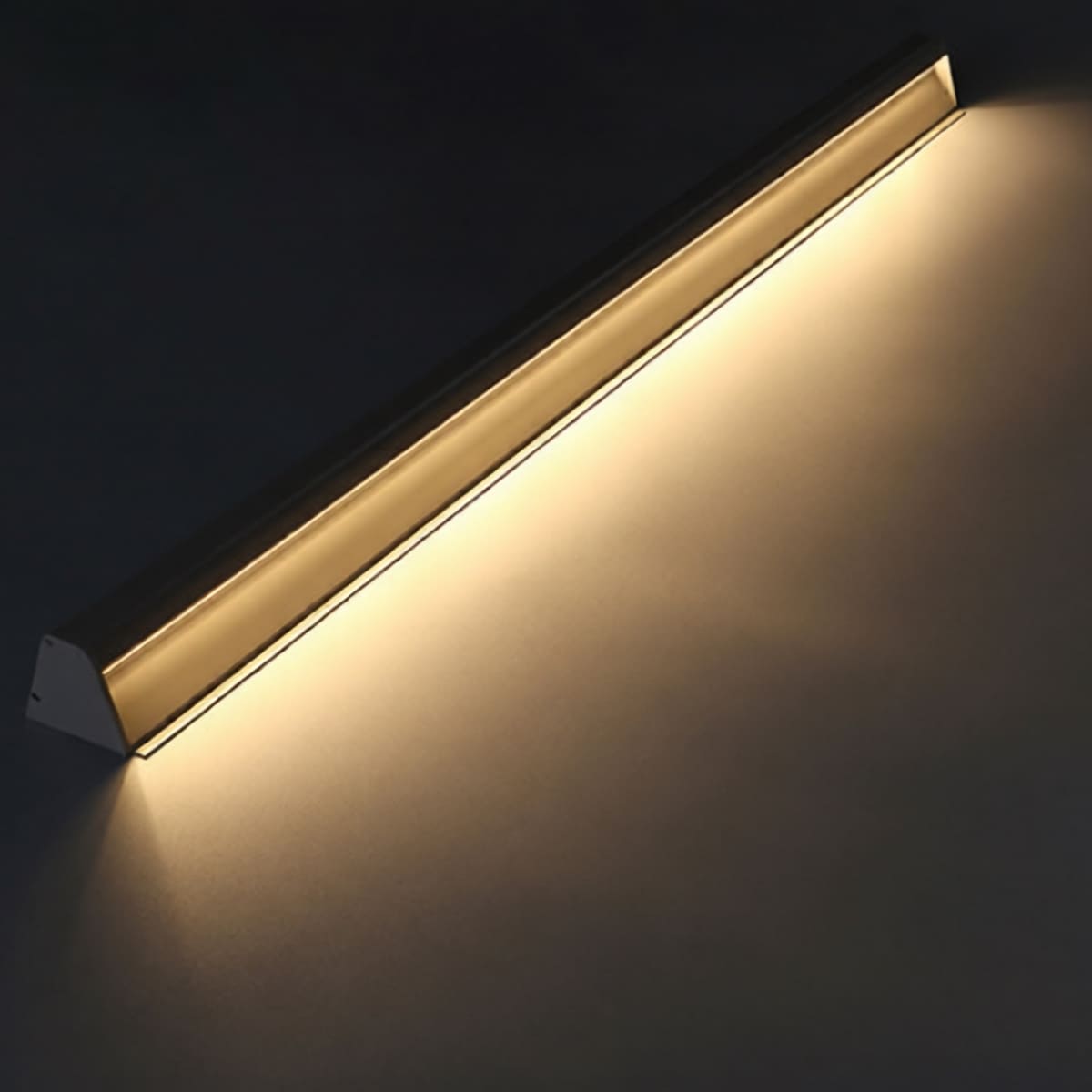

Real nighttime lighting effect showcase
Additional information
| Weight | 1.9 kg |
|---|---|
| Color | 3000K, 4000K, 6000K, DMX512 RGB, DMX512 RGBW, GoldenYellow |
